SKU:AP-EP-4968-000 Can you tell me the full dimensions of these lug washers?
Solder Lug Washers for Pots
Status:
Open May 14, 2025 - 11:28 AM
1answer
Answer
May 14, 2025 - 11:43 AM

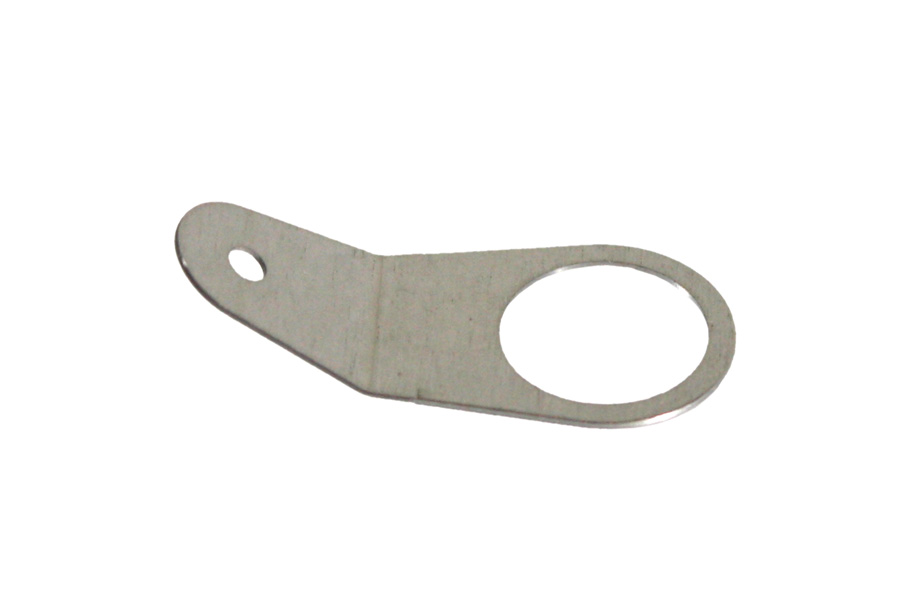

The large hole is just over 10mm. They are made to fit full size 24mm pots, so the distance from the center of the hole to the bend is about 12mm. Then it's approximately 12mm from the bend to the tip of the lug portion. The small hole is 2mm diameter.
View More Product Details
Solder Lug Washers for Pots
Make your pot grounding as easy as possible by using ground washers. No more mess and struggle getting your leads to solder to the backs of pots! For pots with 3/8" bushings. Sold individually.
