What is the spacing between leads on these trimpots? I want to use them on a PCB and need to know for the footprint

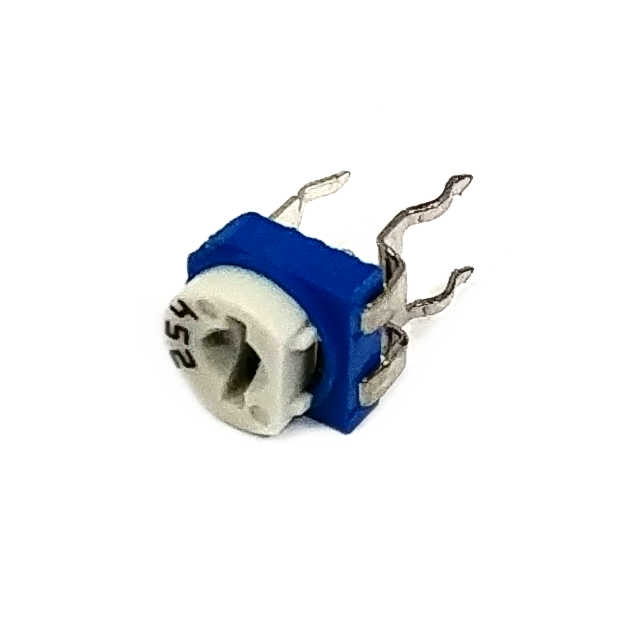

Trimpots - 6mm
Status:
Open May 05, 2025 - 01:24 PM
1answer
Answer
May 05, 2025 - 01:30 PM
They are in a triangular arrangement. The ones on the same side are 5mm apart. The one on the other side is 5mm away from the center of the other two. So, 5.59mm away from either of the other two lugs (2.5² + 5² = 5.59²).
View More Product Details
Trimpots - 6mm
Taper: B / LinearPercent @ Half Turn: 50%Resistance: choose from listTolerance: +-20%Power Rated: 1/8W
